The Shoot mode is where you will be actively controlling cameras, recording camera movement, and setting up physical camera tracking.

Shoot Mode UI Overview

The Shoot mode is made up of three sections:

The Viewfinder

This viewport shows what the currently active camera is seeing. This and all other viewfinders shown in the editor are displayed in 1080p. The resolution can be changed when exporting content.

To learn more about how SceneForge Studio uses cameras, see the cameras page.

Viewfinder Camera Controls

To rotate/face the active camera, left click and drag inside the camera's viewport. This will allow the camera to "look" around in your scene.

You can also use the W, A, S, D while holding the left mouse button to move the camera forward, back, left, or right.

You can also press F on the Keyboard to toggle full screen camera view mode.

Changing Camera Properties

To change the values shown at the top of the viewfinder, hover your mouse over them and adjust the mouse scroll wheel. These properties are explained in detail on the cameras page.

To set the focus distance automatically, right-click somewhere in the viewfinder. This will ensure that the clicked-on object is in focus.

The focus will be broken when the camera moves, as it just sets the focus distance.

It replicates the "tap-to-focus" feature found on smartphones and modern cameras.

To lock focus so that the clicked object stays in focus regardless of motion, hold shift when right-clicking on the object.

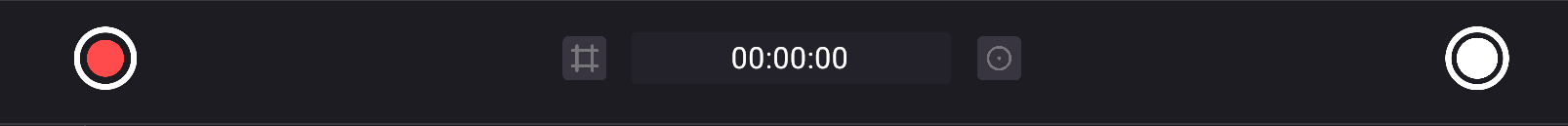

Capturing Content

To take a snapshot of the viewfinder left click the white circle button in the bottom left. This will capture an image of the camera's view in 1080p (the resolution of the editor viewfinders), and store all of the camera's info as a Shot. Shots can be used to compile storyboards in the Storyboard Mode

To start/stop recording left click on the red record button. This will record the camera's motion to the timeline.

You also have the option to record video in real time in 1080p, though this is not recommended for performance reasons. To learn more about recording, see the Cameras and Recording page.

You can also toggle a "rule-of-thirds" grid, and toggle Focus Debug Mode.

That will display your scene in black and white, with white meaning out of focus, and black meaning in focus.  You can also temporarilyu use this mode by holding down the tilde key (~).

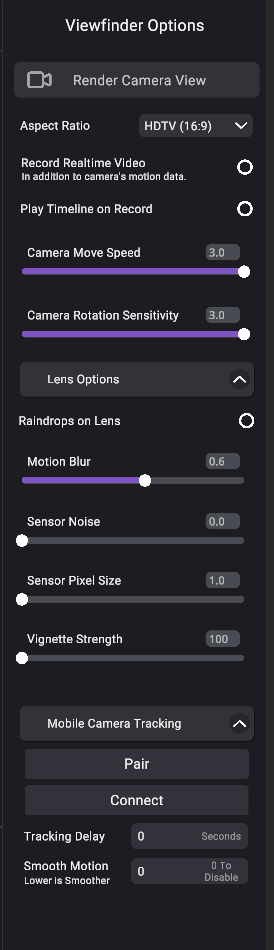

Viewfinder Options

This section is where you can set video settings such as resolution, aspect ratio, and framerate, as well as playback settings.
